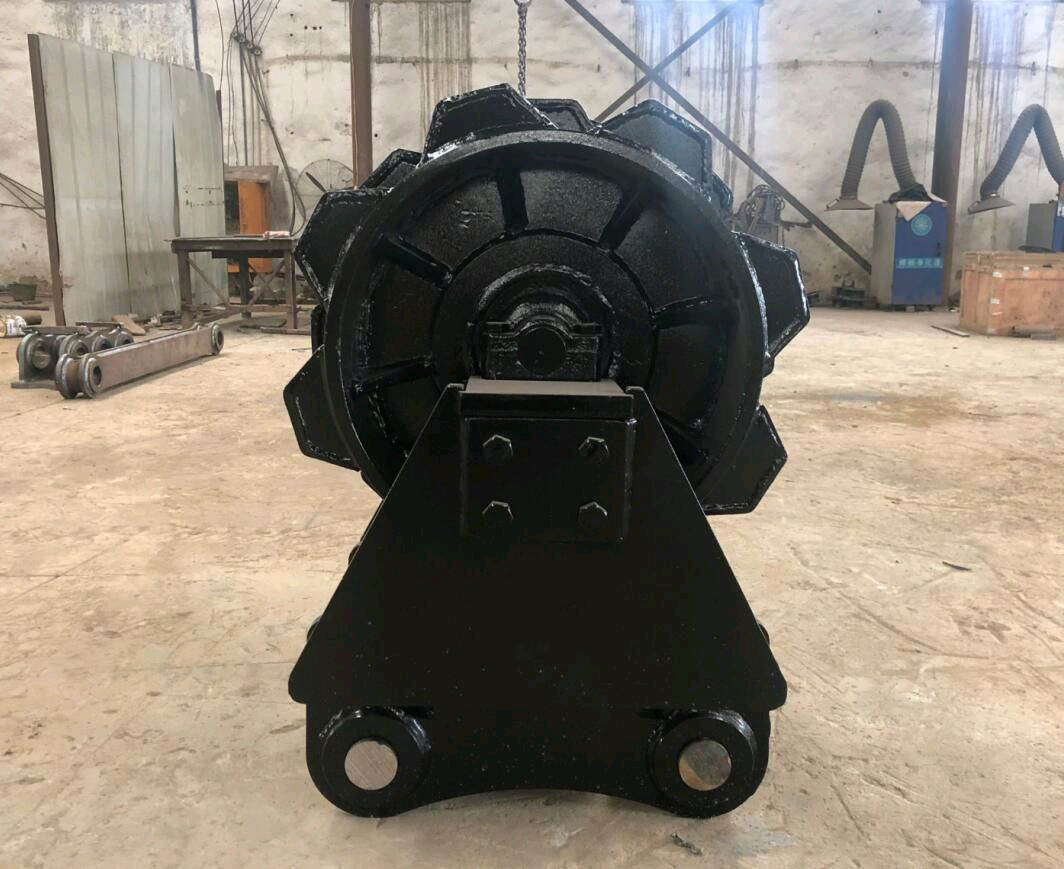

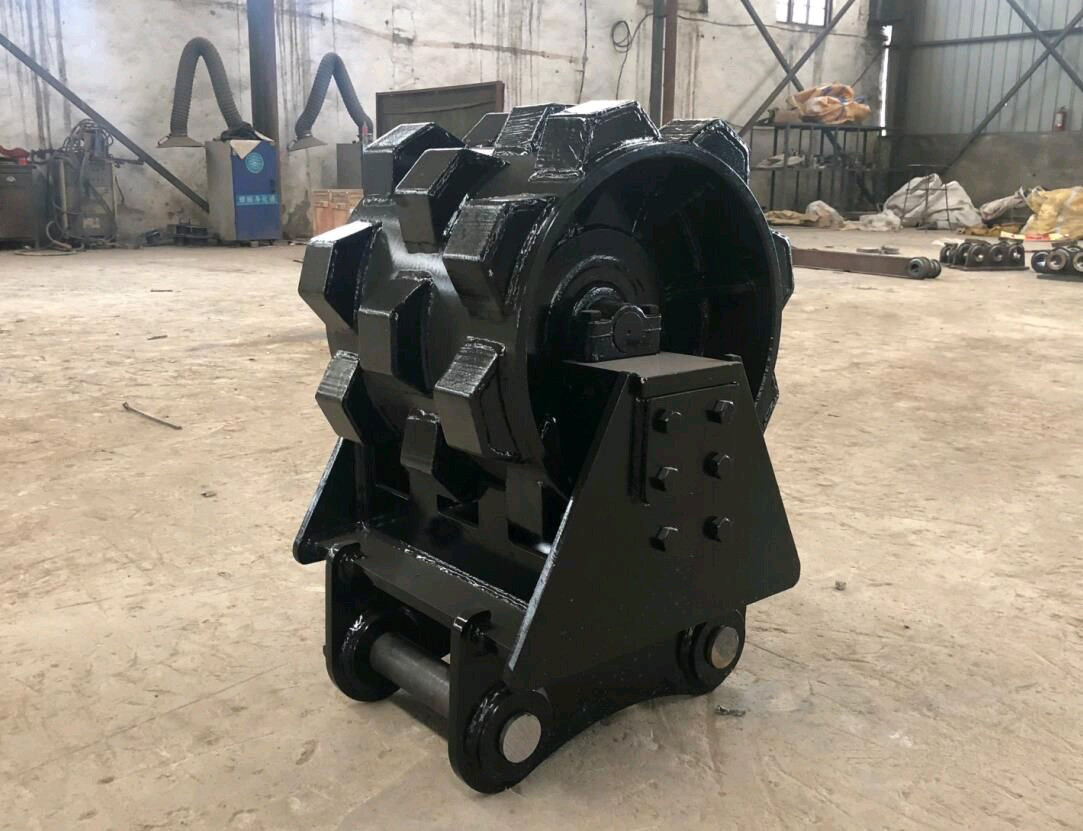

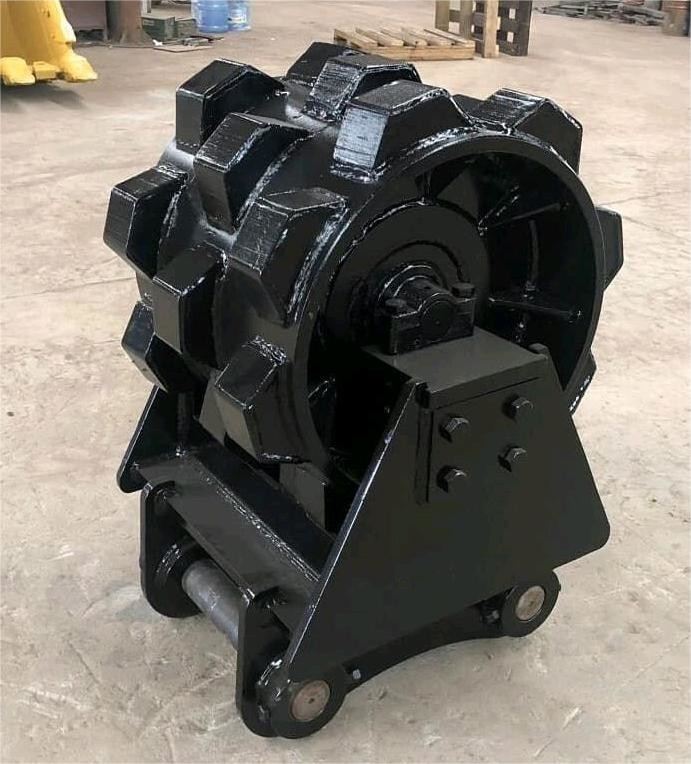

Dirt Compaction Wheel Trench Compactor Wheel for excavator
2024 Zhonghe Machinery Catalogue 3M.pdf
Features of Compaction Wheel
The compaction wheel is a specialized construction attachment used in various earthmoving and compacting applications. It is designed to enhance soil compaction efficiency and improve the stability and load-bearing capacity of the ground. This framework will outline the key components, working principles, and applications of a compaction wheel.
I. Components of a Compaction Wheel
A. Axle: The central shaft that connects the compaction wheel to the host machine.
B. Frame: The structural framework that supports the compaction wheel and distributes the compaction forces.
C. Paddles or Rollers: These are the cylindrical components that make contact with the ground and exert pressure to compact the soil.
D. Bearings: Enable smooth rotation of the compaction wheel.
E. Hydraulic Motors: Provide power to rotate the compaction wheel.
II. Working Principles
A. Attachment and Connection: The compaction wheel is connected to the host machine via the axle and hydraulic connections.
B. Ground Contact: The paddles or rollers make contact with the ground surface.
C. Rotational Movement: The hydraulic motors drive the rotation of the compaction wheel, causing the paddles or rollers to roll along the ground.
D. Compaction Forces: As the compaction wheel rolls, it exerts downward pressure on the soil, compacting it.
E. Traveling and Overlapping: The host machine moves forward, allowing the compaction wheel to cover a larger area. Overlapping passes ensure uniform compaction.
F. Adjustability: Some compaction wheels offer adjustable features, such as variable paddle or roller spacing, to accommodate different soil types and compaction requirements.
More excavator bucket as below:
These are our top-rated products. Such as excavator rock bucket, trapezoid bucket, cleaning bucket, tilting bucket, clamshell bucket, skeleton bucket.
We take part in Changsha Construction Machinery Exhibition
Certification of Rock bucket
Q: Are you a trading company or a manufacturer?
A: We are a factory.
Q: How long is your delivery time?
A: 15 days for 1~4 pieces, 30 days for one container (10~20 pieces)
Q: Do you provide repair parts?
A: Yes, we will provide you with the explosion parts list, if you need related parts, we can provide them.
Any details, welcom to your inquiries !
