Factory customs produce good quality excavator root rake for 1-40 ton excavator
2024 Zhonghe Machinery Catalogue 3M.pdf
Features of Excavator Riddle Rake Bucket

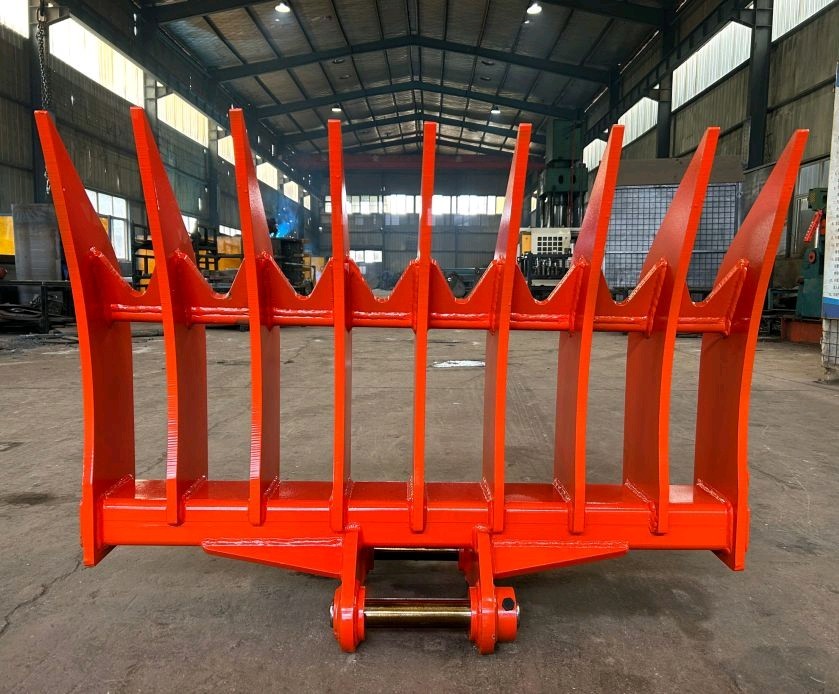

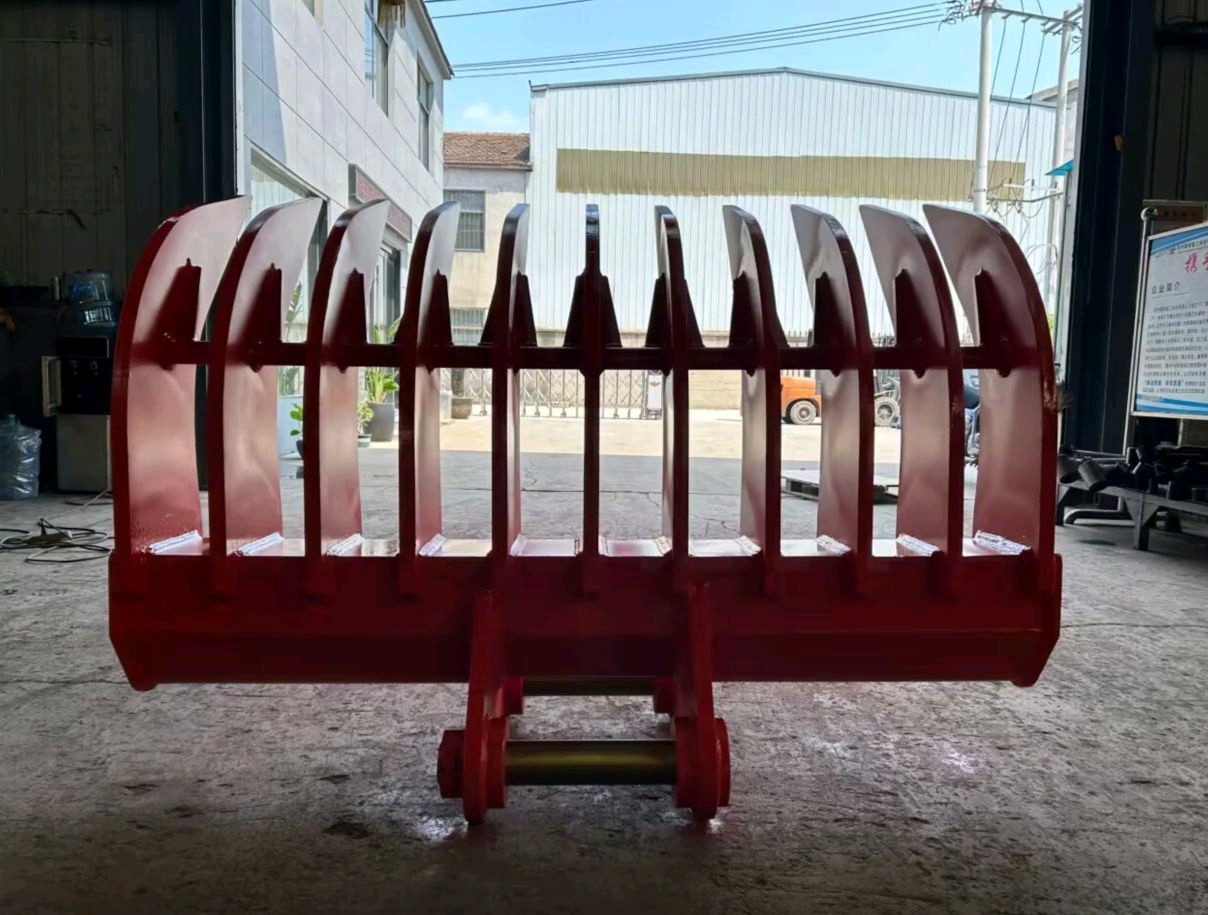

An excavator root rake is a type of attachment designed for use with excavators. It is specifically designed to clear vegetation, brush, roots, and debris from the ground during land clearing or site preparation tasks. The root rake typically consists of a heavy-duty steel frame with multiple tines or teeth that extend forward.
The tines of an excavator root rake are spaced apart to allow soil to sift through while retaining larger objects such as roots, rocks, and branches. This allows the operator to clear the land while minimizing the amount of soil or smaller debris that is collected. The root rake is often used in forestry, construction, and landscaping applications where the removal of vegetation, roots, and other materials is required.
The attachment is typically connected to the excavator's bucket or coupler using pins or quick couplers. The size and design of the root rake can vary depending on the specific excavator model and the intended application. Some root rakes may have additional features such as reinforced tines or grapple functionality for enhanced performance and versatility.
Excavator root rakes are commonly used in combination with other attachments such as buckets, grapples, or thumbs to maximize their effectiveness in different types of clearing or land preparation projects.
Other Bucket Recommended
1. Standard bucket
Q355B material, standard plate thickness, and China high-quality bucket tooth base. It is mainly applicable to light operation occasions such as excavation of general clay and loading of sand, soil and gravel.
2. Rock bucket
Q355B material, NM400 optional. On the basis of the standard bucket, reinforcing plates are added at the bottom, and the tooth plate and side plate are thickened. It is mainly applicable to heavy and light industrial occasions such as excavation of hard soil and loading of soil, gravel and gravel mixed with soft sand.
3. Heavy duty rock bucket:
Q355B+Hardox500. On the basis of the reinforced bucket, the bottom plate and side plates are thickened. It is mainly applicable to the excavation of hard rocks, secondary hard rocks and wind fossils mixed in the soil; Loading of hard rock and ore after blasting.
4. Skeleton excavator bucket
5. Tilt bucket for mini excavator
6. Clamshell excavator bucket
7. Grading ditching bucket
8. Excavator Ripper
9. Excavator Log Grapple
1. We pack the products by pallet or case which is seaworthy.
2. Fast delivery time: 5-7 days for small quantity, and 20-30 days for container quantity.
3. We have a team specialized in packing and loading container, they have rich experience,
and can load the max quantity products, which can help customer save the ocean freight.
International standard pallet or wood case.
1. one 20GP can load about 12-14 pieces 1.0m3 or 1.2m3 buckets for 20ton excavator(Width less than 42 inches )
2. one 40HC can load about 26-28 pieces 1.0m3 or 1.2m3 buckets for 20ton excavator;
3. one 20GP can load about 8 pieces 1.6m3 buckets for 30ton excavator;
4. one 40HC can load about 16 pieces 1.6m3 buckets for 30ton excavator.
