excav parts long reach boom excavator Telescopic Arm Dipper Stick excavator long reach arm customized telescopic excavator
Advantages of excavator telescopic arm
Advantage 1: The external hose pulley separates the hose from the main rope, reducing friction and enhancing maintenance convenience.
Advantage 2: Utilization of a 30mm main rope and a 26mm auxiliary rope, with an upgraded design for smoother pipe stretching.
Advantage 3: Incorporation of an external hose pulley to prevent friction between the main rope and the hose, decreasing failures and easing maintenance.
Advantage 4: Strategic placement of the oil filling hole at the front end of the second arm and refueling holes on both sides of the third arm, enhancing accessibility.
Three-section Telescopic Arm:
- Primary material selection: Q690/HG785 for increased strength and reduced weight.
- Arm tube material: Q690D/HG785 for extended lifespan, reduced weight, and enhanced strength, with Q355B used in another section.
Telescopic Arm Components:
- Integration of nylon material to diminish wear.
- Pulleys crafted from POM material for elevated mechanical strength and rigidity.
- Placement of two sliding wheels at the top and bottom to segregate high and low segments.
- Implementation of pressure hoses and steel wire ropes to minimize friction, thereby prolonging service life.
- Notable segmentation of wire ropes at the top and high-pressure hoses at the bottom, with an adjustable bracket for hose tension adjustments as needed.

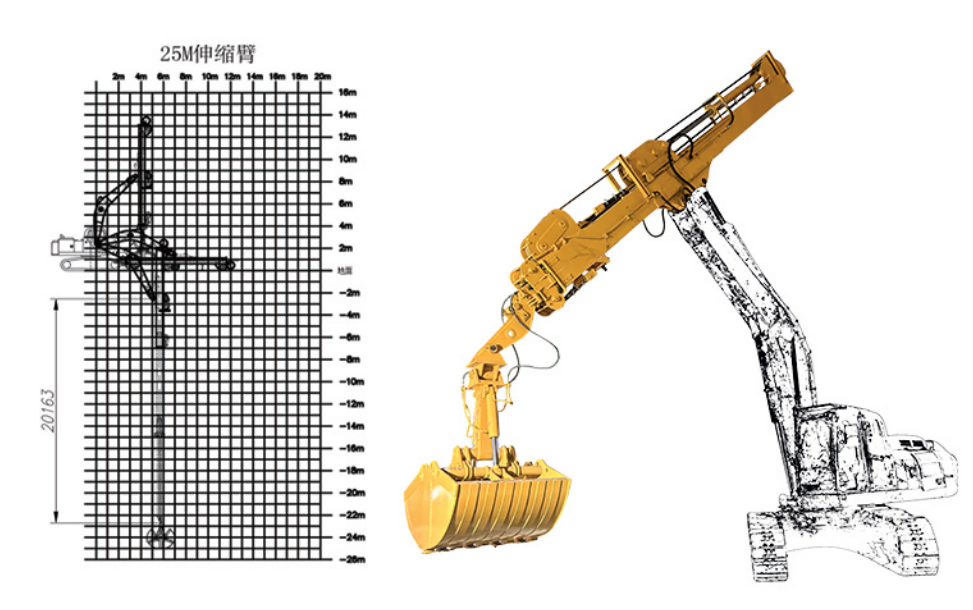

| Excavator (Ton) | Max Depth (mm) | Effective Length (mm) | Bucket Capacity (mm) |
| 6-10 | 10000 | 7600 | 0.2-0.3 |
| 11-15 | 14000 | 10500 | 0.4-0.6 |
| 20-30 | 16000 | 12500 | 0.8-1.5 |
| 30-35 | 20000 | 15500 | 1.3-1.66 |
| 30-35 | 25000 | 20500 | 1-1.4 |
| 40-45 | 25000 | 20500 | 1.8-2.5 |
| 40-45 | 30000 | 25100 | 1.4-2 |
Robust structure
1. Adopt 22-ton strong bucket cylinder
Avoid oil leakage
2.The cylinders are important, the telescopic arm for sale is leading by extrending and retracting.
1. Hydraulic hoses are made of four-layer steel wire ring.
2. The telescopic cylinder adopts double oil seals
3. Bucket cylinder hose was built-in to avoids oil leakage caused by hose vibration
Long service life
Excavator sliding boom arm is designed with longer life-span.
1. The reel adopts enlarged spring piece
2. Adopt 22-ton strong bucket cylinder
Easy to maintain
The cylinder of the excavator boom arm is long, the tube steels are long.
1. Lubrication system for sliders help support butter easily.
2. Bucket cylinder hoses can be replaced easily, without dismantling the arm.
Avoid oil leakage
The cylinders are important, the telescopic arm for sale is leading by extrending and retracting.
1. Hydraulic hoses are made of four-layer steel wire ring.
2. The telescopic cylinder adopts double oil seals
3. Bucket cylinder hose was built-in to avoids oil leakage caused by hose vibration
14000㎡ Workshop
We has more than 14000㎡ steel structure standard workshop with a large number of high precision processing equipments.
Prompt Lead Time
(1)Our lead time is 7-15 days. (2)Our annual output of various types of excavator boom arms can reach 600 sets.
High-tech R&D Team
We use precision drawing software to achieve the max working range under the premise of safe operation.
100% Service
(1)Online support within 24 hours. (2)Appointment video technical support. (Our engineers have focused on excavator boom and attachment over 10 years)
Usually use 40GP container to load product !
Contact sophia to inquiry details !
